Wheel 01
17" Orbitek
Variations / notes
None.
WK reference guide
Grand Cherokee (WK) 2005-2010 Wheels
Photos, factory wheel names, sizes, model-year notes, and known finish variations from the original Colorado4Wheel.com guide.
Fitment notes
Quick specs
17x7.5" Wheels17x7.5" Wheels: Backspacing = 6.25" Offset = ? Bolt pattern = 5x5 (5x127mm)
Lugnuts / TorqueLugnuts: 1/2" x 20 Torque: 90-120 ft. lbs.
Wheel catalog
7 wheels listed
Use the filter to narrow by name, year, size, finish, or note. Click an image to open the larger source image when one is available.

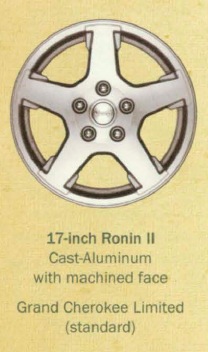

Wheel 03
Ronin II
Variations / notes
No known.
Wheel 04
Sextant
Variations / notes
None.
Wheel 05
Everest
Variations / notes
None.
Wheel 06
Summit
Variations / notes
None.

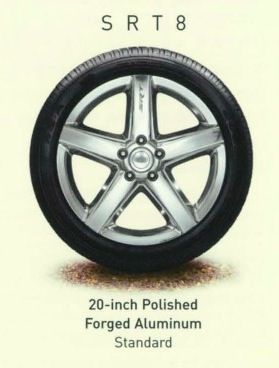

Wheel 07
SRT8
Variations / notes
9" Wide Front, 10" wide rear.
Open compact table view
| Photo | Name | Size | Model years | Variations / notes |
|---|---|---|---|---|
| Photo | 17" Orbitek | 17x7.5 | 2005-2007 | None. |
| Photo | 17" Moduflex | 17x7.5 | 2005-2007 | Chrome(Limited), Platinum(Overland, 2006+) |
| Photo | Ronin II | 17x7.5 | 2005-2007 Limited | No known. |
| Photo | Sextant | 17x7.5 | 2007-2010 | None. |
| Photo | Everest | 17x7.5 | 2007-2010 (Limited & Overland) | None. |
| Photo | Summit | 18x? | 2007-2010 (Limited & Overland) | None. |
| Photo | SRT8 | 20x9 Front 20x10 Rear | 2006-2010 | 9" Wide Front, 10" wide rear. |

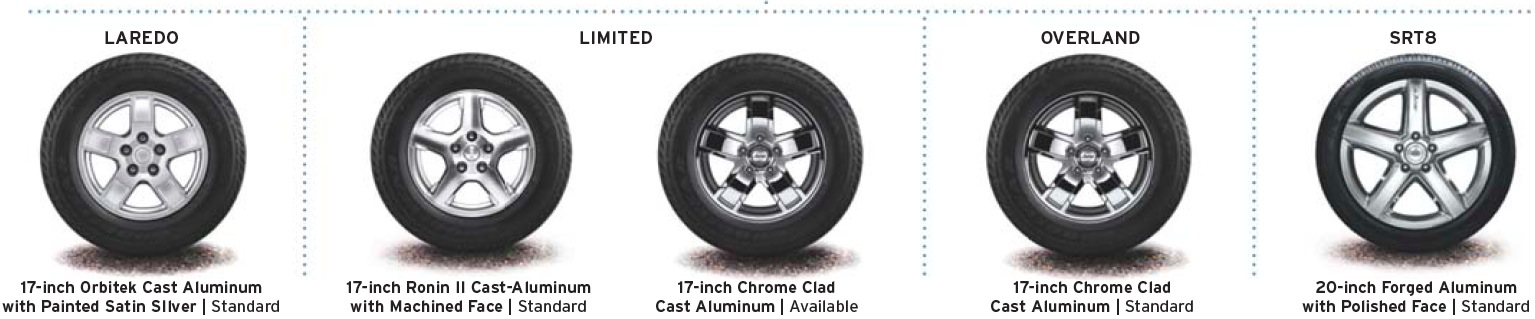

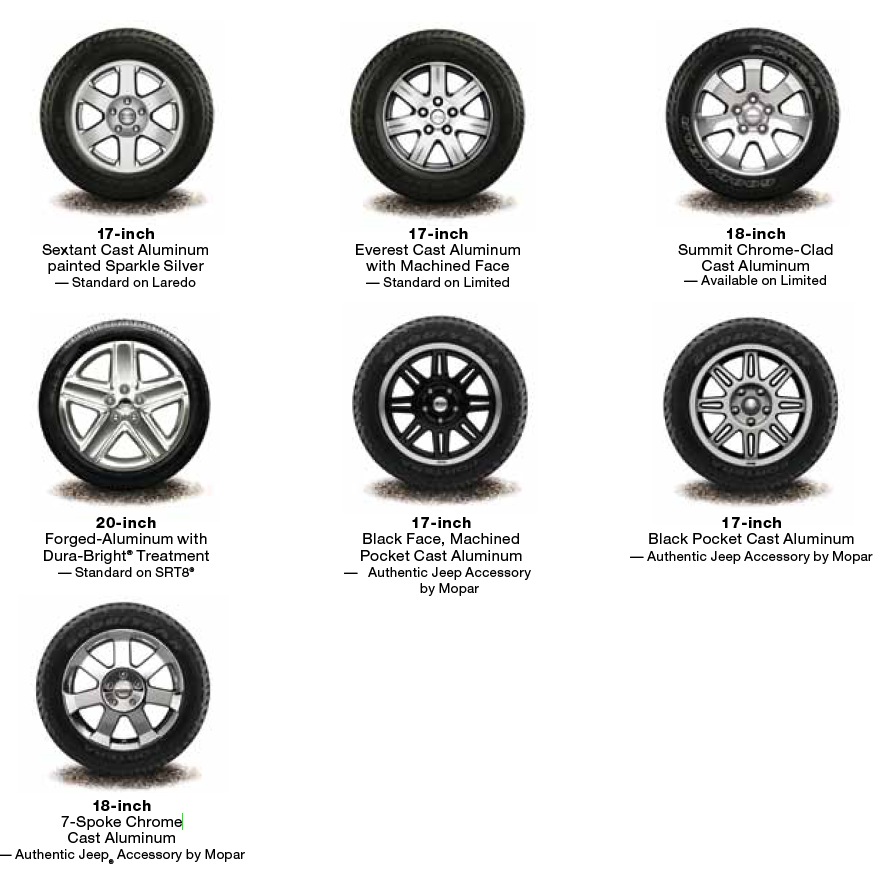

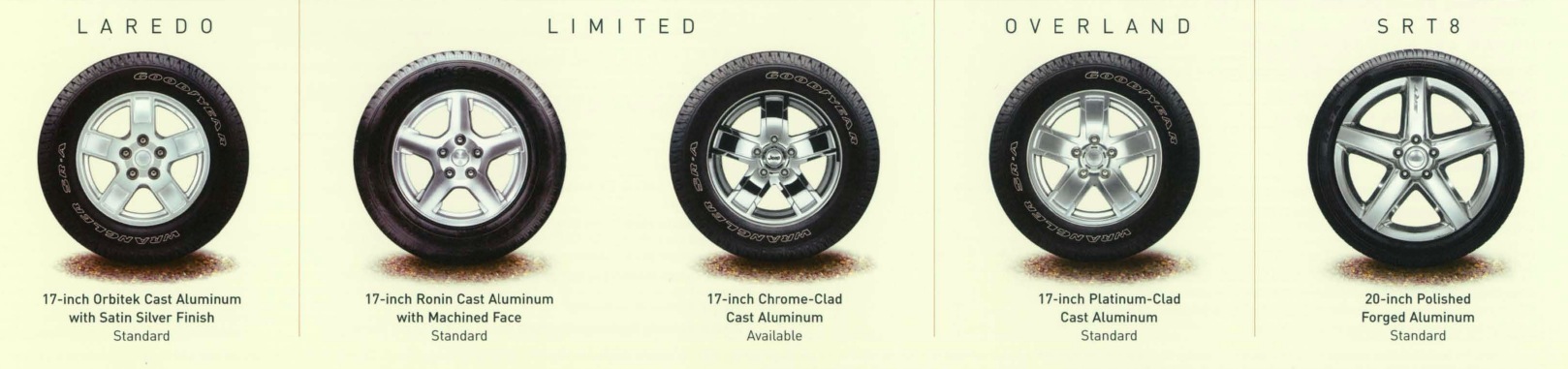

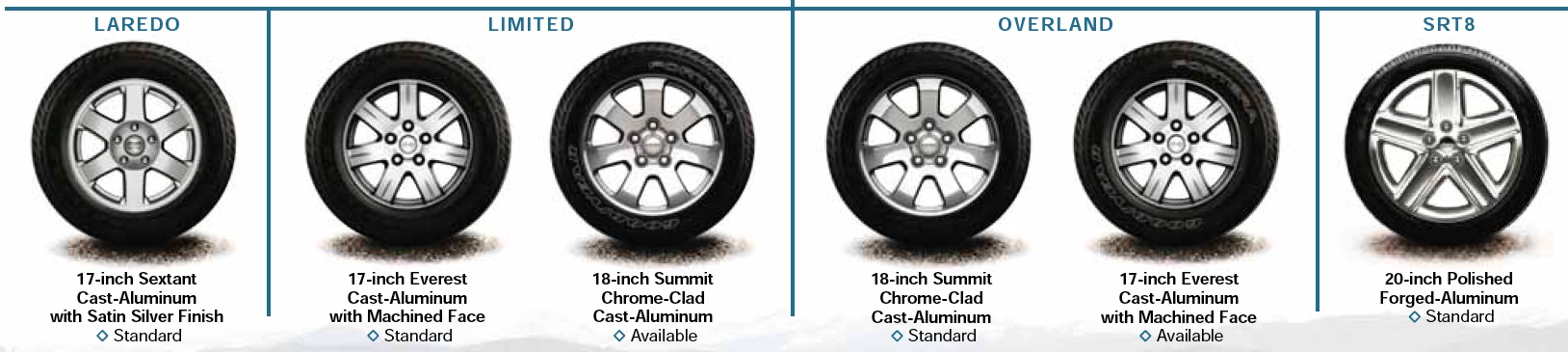

Factory reference scans
Original wheel option sheets
These are existing source images from the old guide, preserved as larger click-through reference material.
